TrailFX Winch - 3 Stage Planetary Gear Drive

12 Volt Electric 9500 Pound Line Pull Capacity 94 Foot Wire Rope Roller Fairlead Wired and Wireless Remote Integrated Solenoid 3 Stage Planetary Gear Drive

TrailFX Reflex 2.0 winches provide the power and performance needed to overcome challenges both on the trail and in a work environment. Reflex 2.0 winches include 94 feet of wire or synthetic rope, a wired/wireless hand-held remote, fairlead and clevis hook. Upgrades from the prior generation include a larger brake, improved line speed, daytime running light and load warning indication system.

Features:

• High Strength Wire Rope Supported With Roller Fairlead And Upgraded Clevis Hook Are Designed To Pull Load Safely And Securely
• Wired Remote Includes 12 Foot Lead To Control Winch From Safe Distance While Recovering.
• Wireless Remote Allows User To Control From Up To 50 Feet, Is Stored Within The Handle Of The Wired Remote
• Integraded Solenoid Housing Meets Ip68 Standards For Water And Dust Resistance

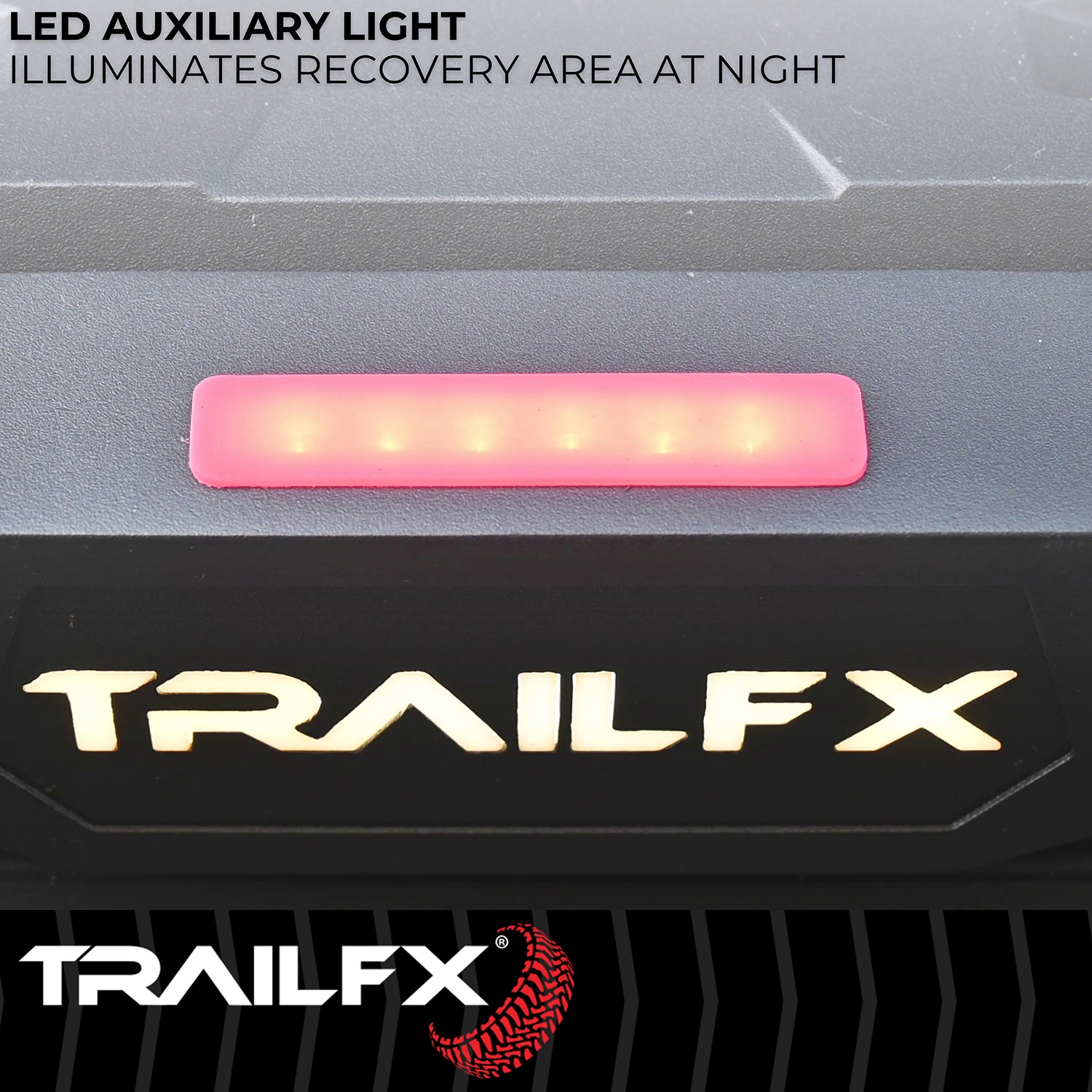

• Daytime Running Light Provides Additional Light To Assist With Recovery Vehicle
• Load Warning Indication Provides User When Winch Is Reaching Max Or Unsafe Load
• 7.0 Horsepower Motor Combined With Larger Brake System Assist With Faster And Reliable Recovery

Specifications:

• Winch Rating: 9500 Pound
• Title: Winch
• Recommended Use: Self-recovery
• Mount Type: Vehicle Mounted
• Motor Horsepower: 7.0 Horsepower
• Max Amp Draw: 400 Amp Max Draw At 9500 Pound
• Line Speed At Max Pull: 5.7 Feet Per Minute At 9500lb
• Electrical Control Type: Solenoid
• Motor Type: Series Wound Motor
• Thermal Shutoff: No
• Drive Gear Type: 3-stage Planetary
• Gear Reduction Ratio: 7.50069444444445
• Free Spooling: Yes
• Operation Type: Automatic
• Brake Type: Automatic Full Load Brake
• Line Diameter (in): 0.32 Inch / 8.3mm
• Line Length (ft): 94 Feet
• Line Material: Steel
• Fairlead Type: Roller
• Conforms To J706 Standards: No
