TrailFX Winch - 3 Stage Planetary Gear Drive

12 Volt Electric 12000 Pound Line Pull Capacity 94 Foot Synthetic Rope Roller Fairlead Wired and Wireless Remote Integrated Solenoid 3 Stage Planetary Gear Drive

TrailFX Reflex 2.0 winches provide the power and performance needed to overcome challenges both on the trail and in a work environment. Reflex 2.0 winches include 94 feet of wire or synthetic rope, a wired/wireless hand-held remote, fairlead and clevis hook. Upgrades from the prior generation include a larger brake, improved line speed, daytime running light and load warning indication system.

Features:

• High Strength Dyneema Synthetic Rope With Upgraded Hawse Fairlead And Clevis Hook Are Designed To Pull Load Safely And Securely
• Wired Remote Includes 12 Foot Lead To Control Winch From Safe Distance While Recovering.
• Wireless Remote Allows User To Control From Up To 50 Feet, Is Stored Within The Handle Of The Wired Remote
• Integraded Solenoid Housing Meets Ip68 Standards For Water And Dust Resistance
• Daytime Running Light Provides Additional Light To Assist With Recovery Vehicle
• Load Warning Indication Provides User When Winch Is Reaching Max Or Unsafe Load

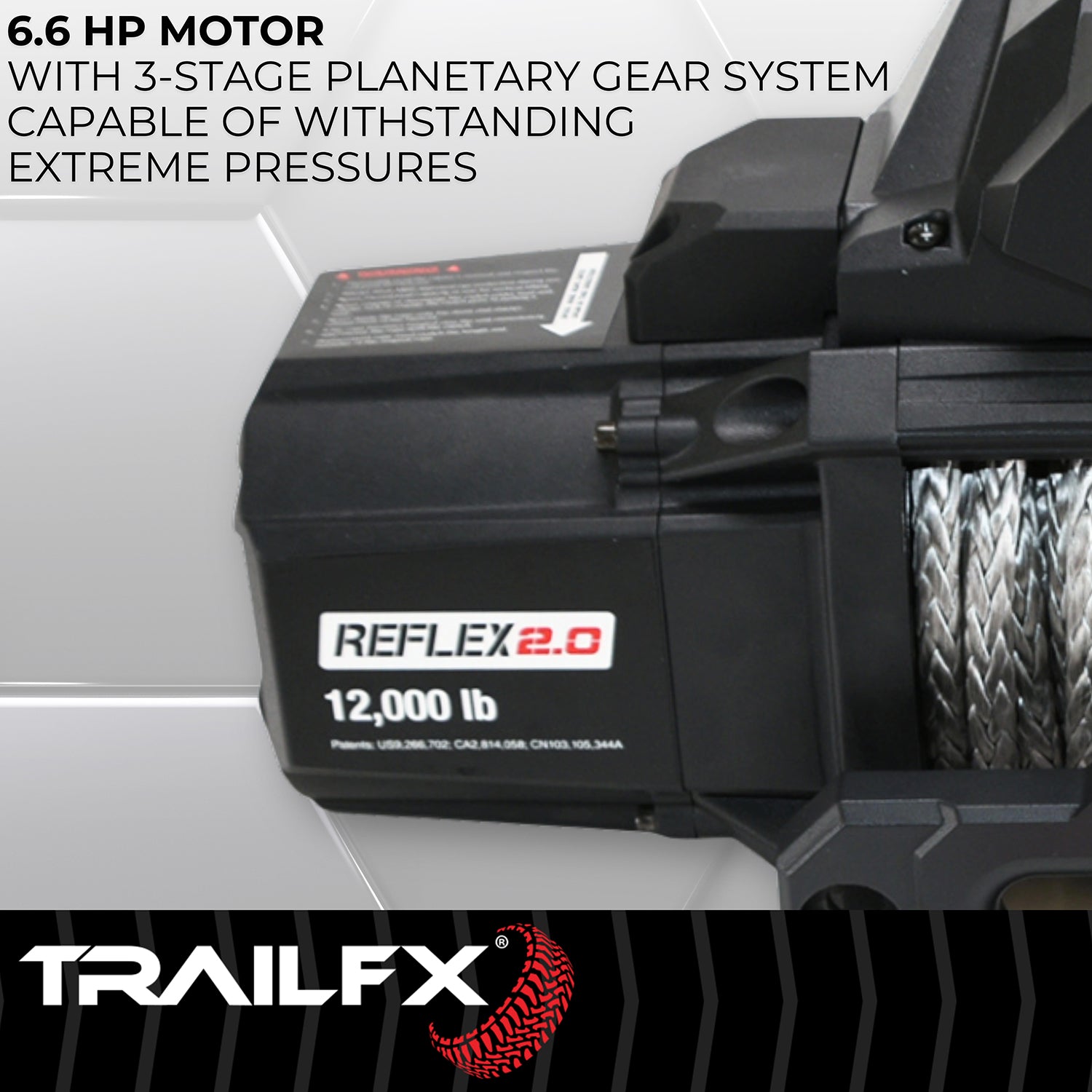

• 6.6 Horsepower Motor Combined With Larger Brake System Assist With Faster And Reliable Recovery

Specifications:

• Motor Type: Series Wound Motor
• Thermal Shutoff: No
• Drive Gear Type: 3-stage Planetary
• Gear Reduction Ratio: 9.08
• Free Spooling: Yes
• Operation Type: Automatic
• Brake Type: Automatic Full Load Brake
• Line Diameter (in): 0.37 Inch / 9.5mm
• Line Length (ft): 94 Feet
• Line Material: Synthetic
• Fairlead Type: Hawse
• Conforms To J706 Standards: No
• Remote Type: Wired / Wireless
• Mounting Hole Quantity: 4
• Mounting Pattern Length (in): 10 Inch
• Mounting Pattern Width (in): 4-1/2 Inch
• Includes Mounting Hardware: Yes
• Color: Black
• Drum Material: Steel
• Prop 65 Y/N: Y
