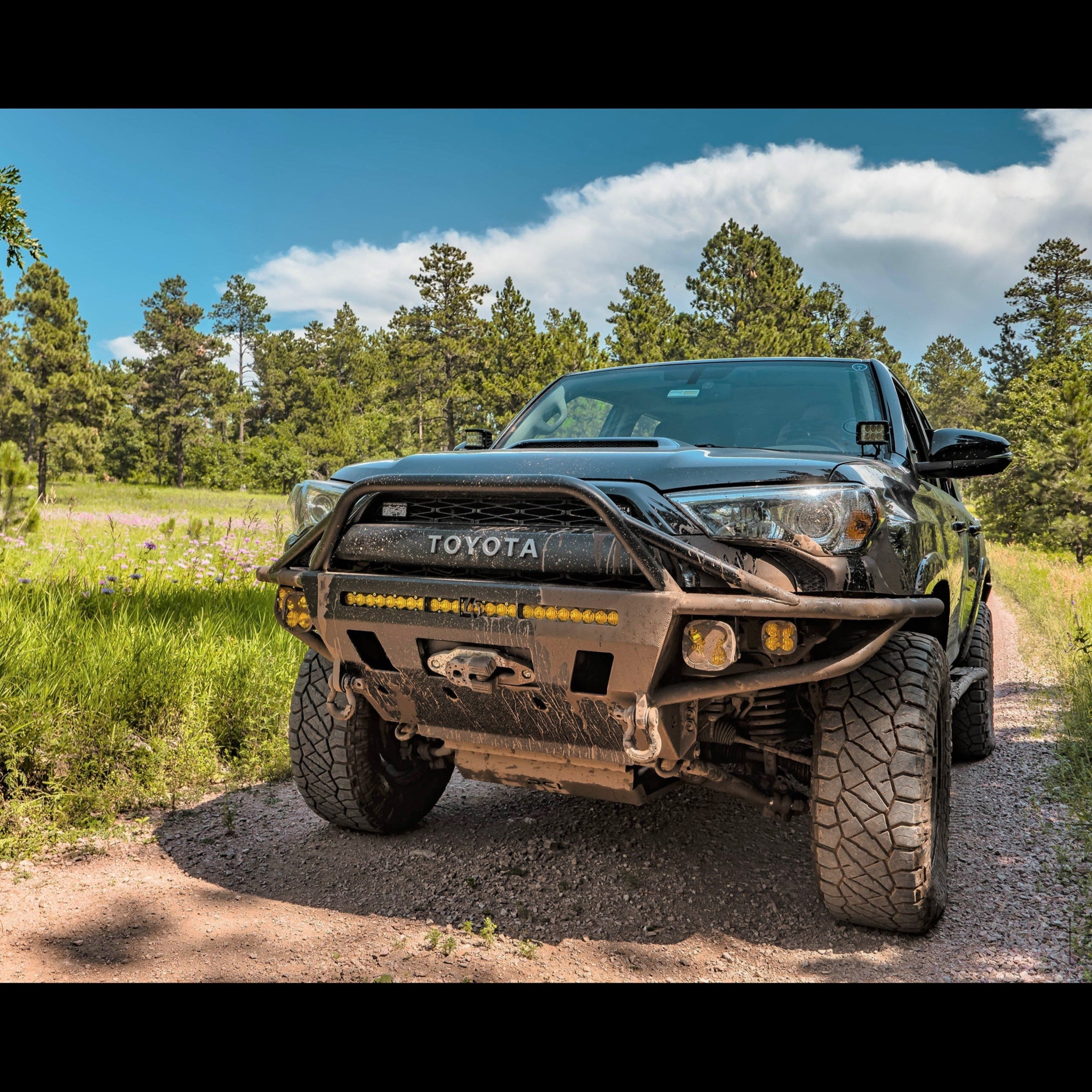

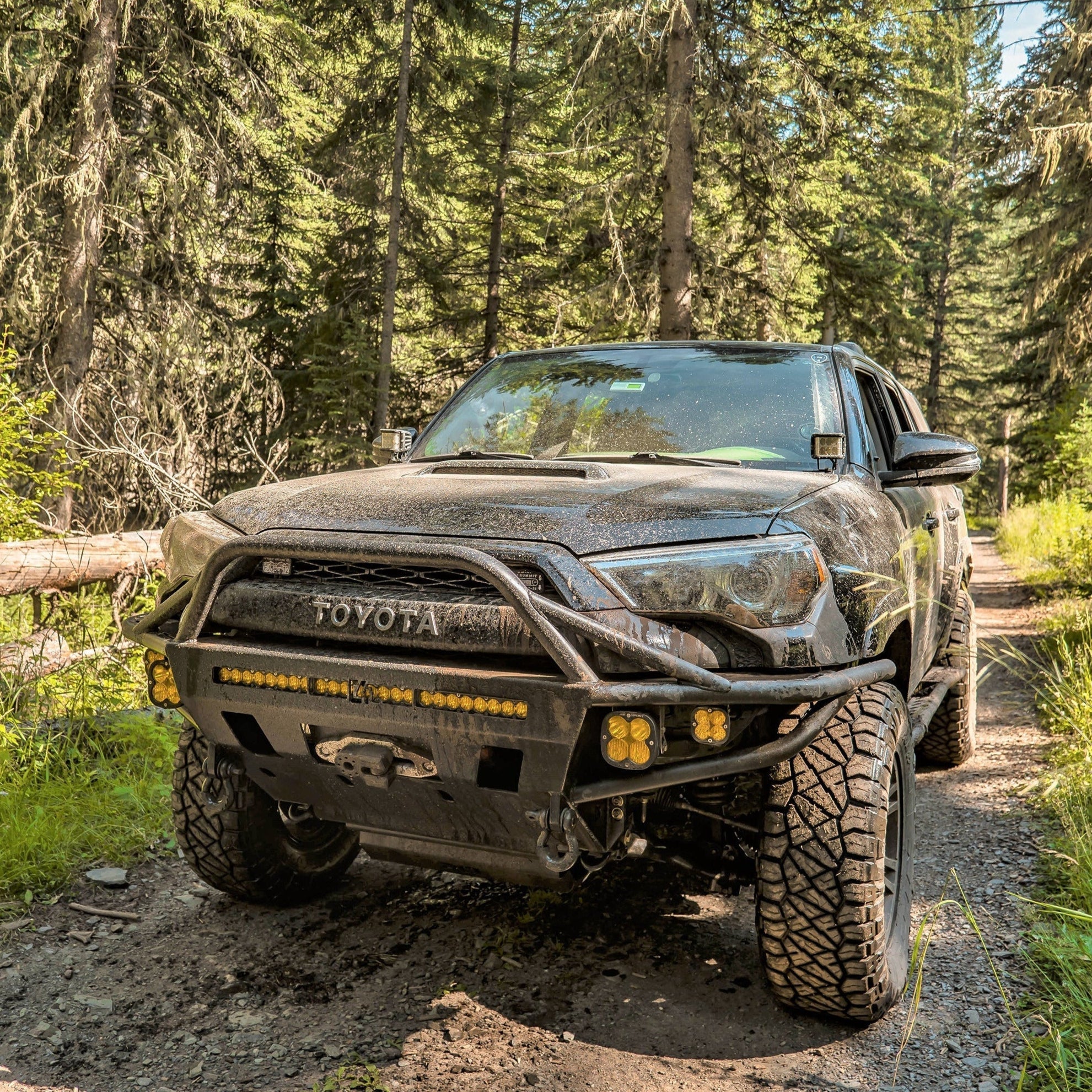

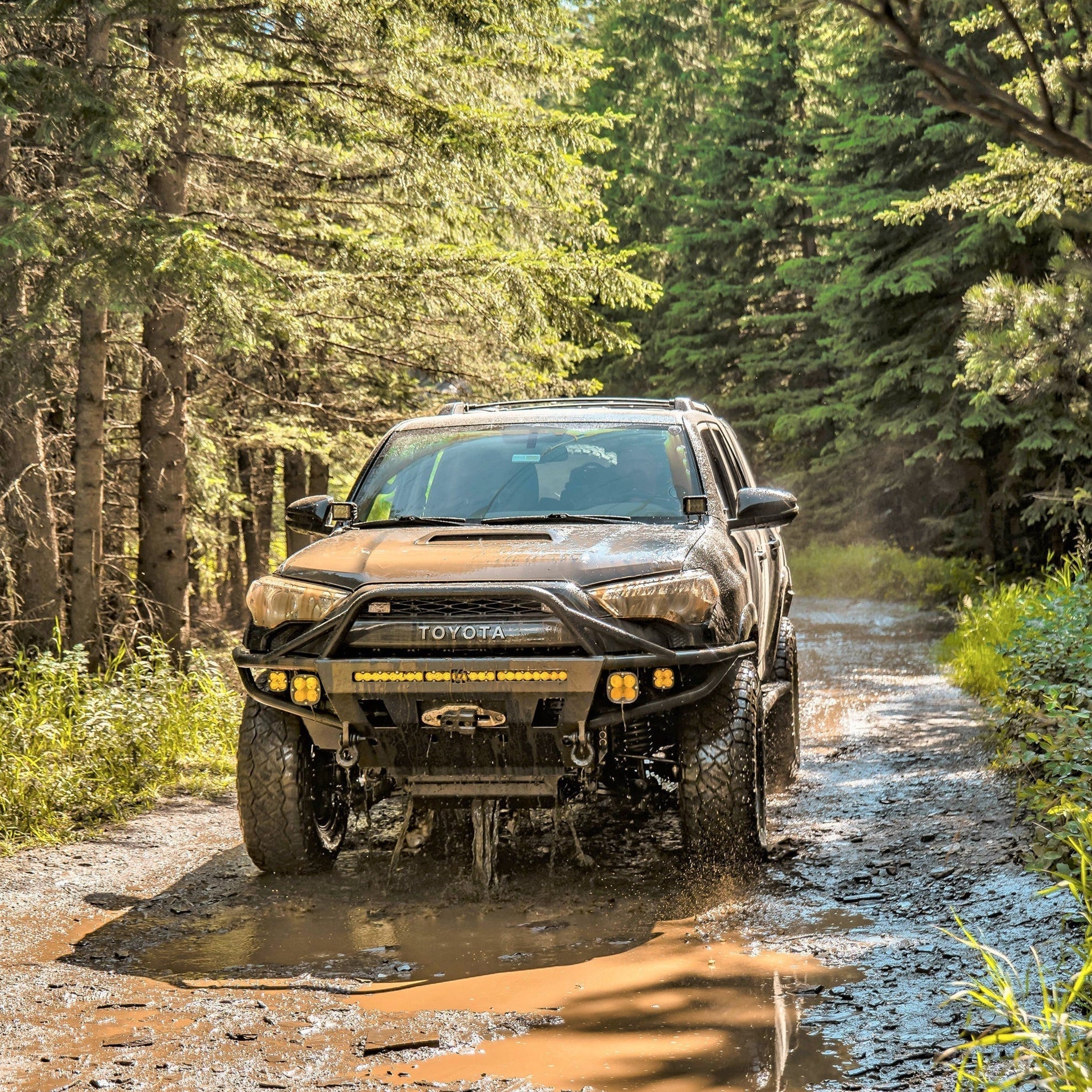

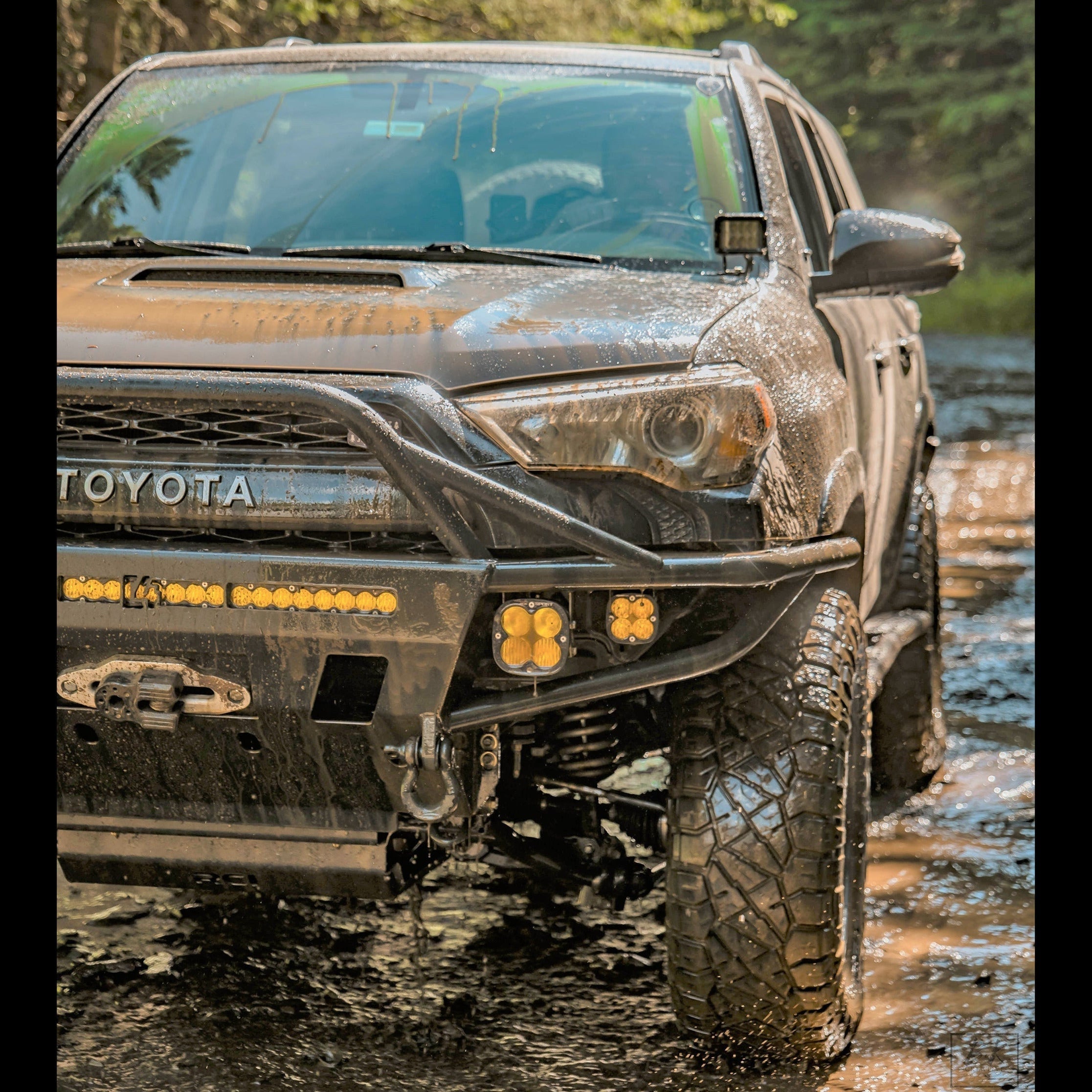

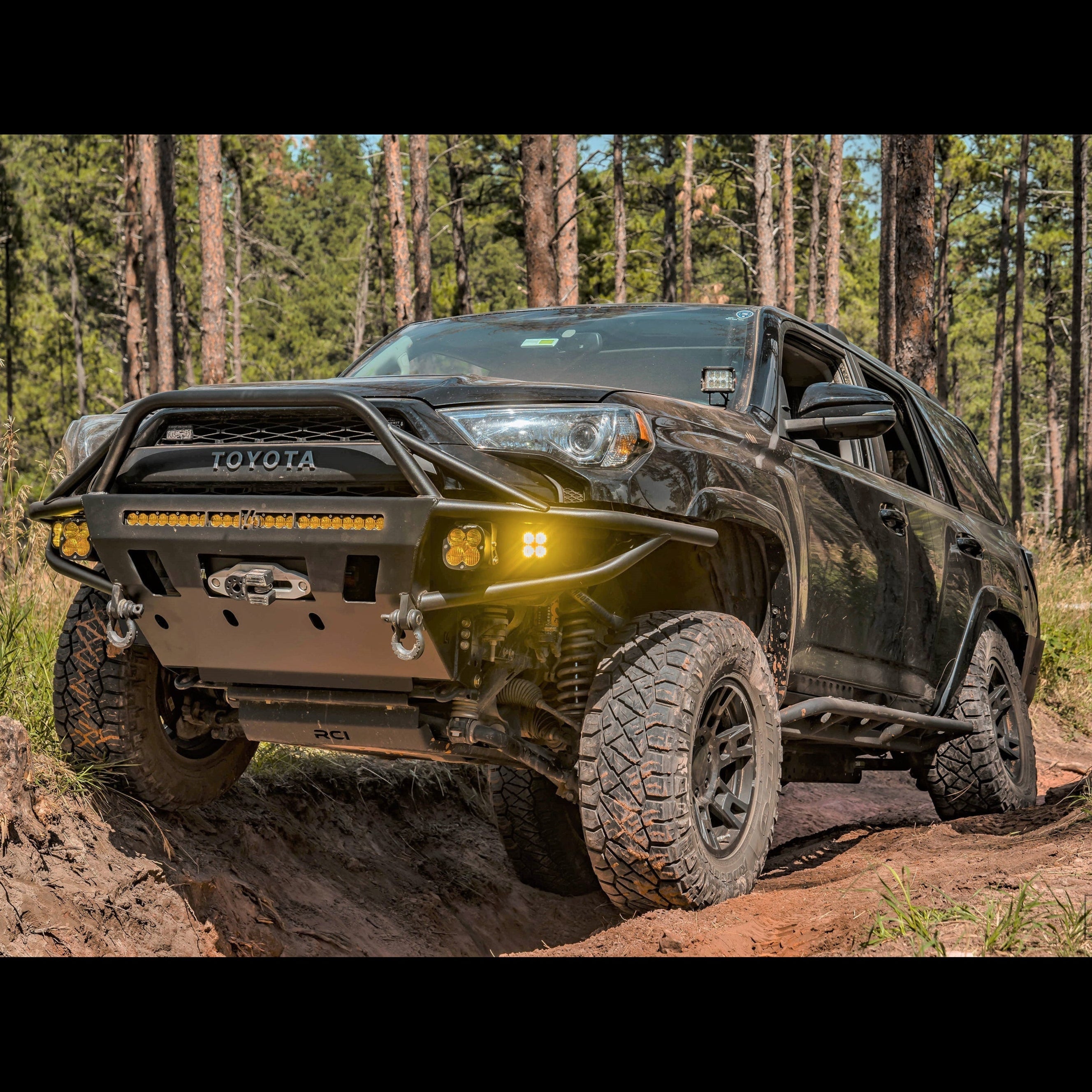

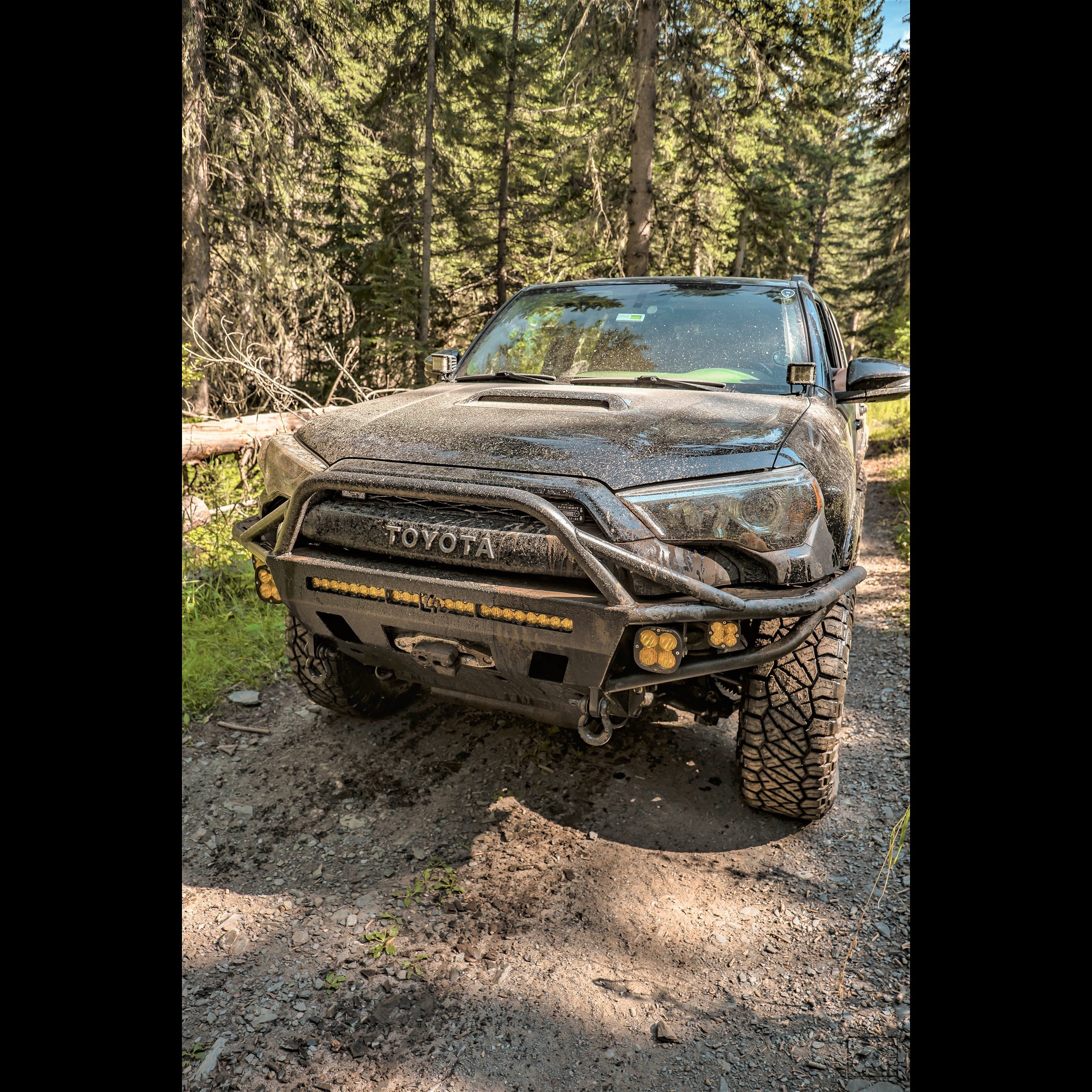

4Runner Hybrid Front Bumper / 5th Gen / 2014-2024

Installation requires cutting the original plastic bumper cover

Power steering cooler lines must be replaced with the included power steering cooler kit

2020+ models featuring TSS must select the TSS Relocation Bracket to retain functionality.

TSS is NOT compatible with the mid-height bull bar version of this bumper.

Not compatible with MTM front camera without relocating camera above bumper

Features:

This bumper is a unique combination of a plate steel center with tube sides.

Introduces Improved Approach Angles

Creates More Space for Larger Tires

Provides the ability to mount a winch, LED light bar, and multiple combinations of fog lighting in the tube area

Center portion is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.

Tube portions are .120 wall 1 3/4″ diameter HREW tubing.

3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.

Fits Most Winches 8k-12k in Size. Winches with the ability to relocate control box recommended. Confirmed fitment on ComeUp, Smittybilt X20, Warn Zeon and VR series winches.

Recommend Using a Synthetic Rope Winch with a Hawse style Fairlead

Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust.

Weight: 120lbs without bull bar, 125lbs with mid height bull bar, 135lbs with full height bull bar

Add-Ons:

Designed to fit 30” Baja Designs S8 Light Bar. Compatible with RIGID SR & Extreme LED 5D as well.

Designed to fit Baja Squadrons & Baja XL light pods in the tube sections

Washer Tank Skid Plate

8-12k Winch, Fairlead, & Winch Shackles

TSS Relocation Bracket

Features & Benefits

Installation requires cutting the original plastic bumper cover

Power steering cooler lines must be replaced with the included power steering cooler kit

2020+ models featuring TSS must select the TSS Relocation Bracket to retain functionality.

TSS is NOT compatible with the mid-height bull bar version of this bumper.

Not compatible with MTM front camera without relocating camera above bumper

Features:

This bumper is a unique combination of a plate steel center with tube sides.

Introduces Improved Approach Angles

Creates More Space for Larger Tires

Provides the ability to mount a winch, LED light bar, and multiple combinations of fog lighting in the tube area

Center portion is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates.

Tube portions are .120 wall 1 3/4″ diameter HREW tubing.

3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.

Fits Most Winches 8k-12k in Size. Winches with the ability to relocate control box recommended. Confirmed fitment on ComeUp, Smittybilt X20, Warn Zeon and VR series winches.

Recommend Using a Synthetic Rope Winch with a Hawse style Fairlead

Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust.

Weight: 120lbs without bull bar, 125lbs with mid height bull bar, 135lbs with full height bull bar

Add-Ons:

Designed to fit 30” Baja Designs S8 Light Bar. Compatible with RIGID SR & Extreme LED 5D as well.

Designed to fit Baja Squadrons & Baja XL light pods in the tube sections

Washer Tank Skid Plate

8-12k Winch, Fairlead, & Winch Shackles

TSS Relocation Bracket

Specifications

Shipping & Lead Time

Brand lead time (C4 Fabrication): 6-8 weeks.

This product ships directly from the manufacturer. Tracking will be provided once the order is released for shipping.
